Description

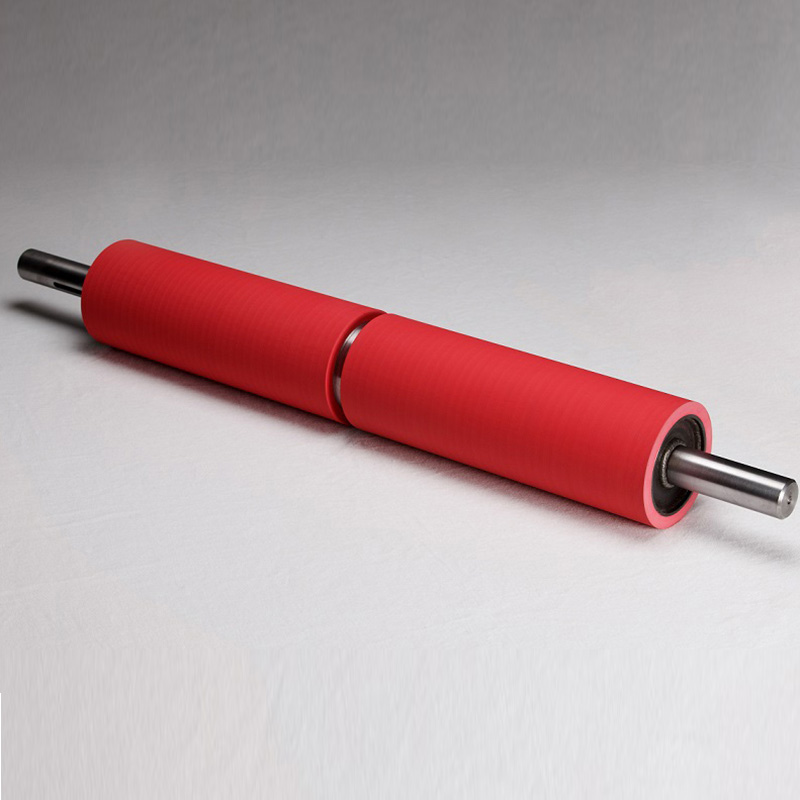

  • Suitable for rubber rollers with high requirements for rebound resilience and wear resistance, such as flooring industry and other applications in machinery industry.

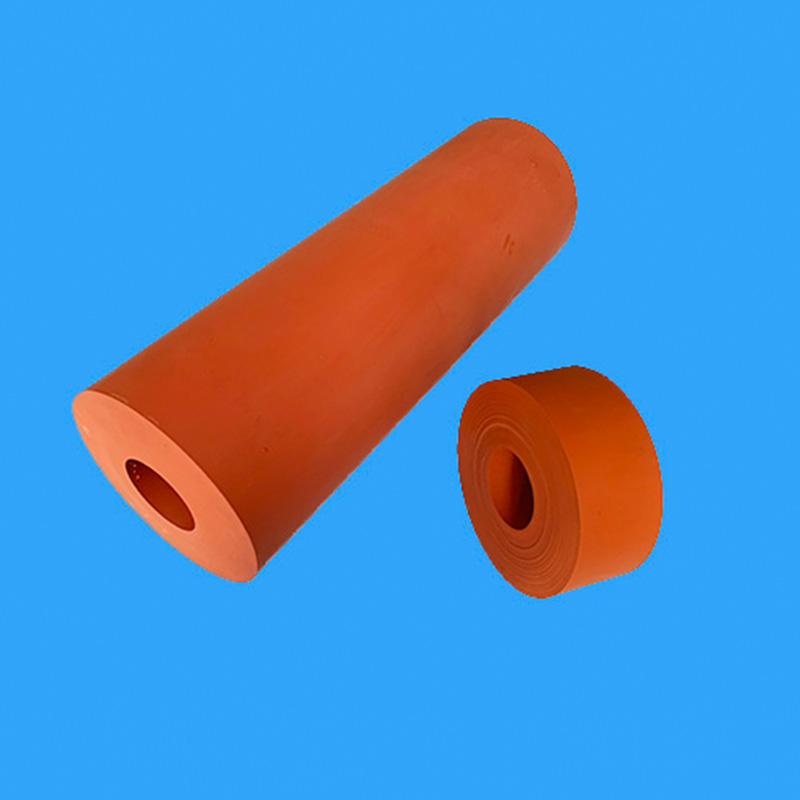

  • Suitable for high temperature resistance or general solvent conditions, such as hot melt adhesive, small quantity of DOP and general weak acid and weak alkali conditions.

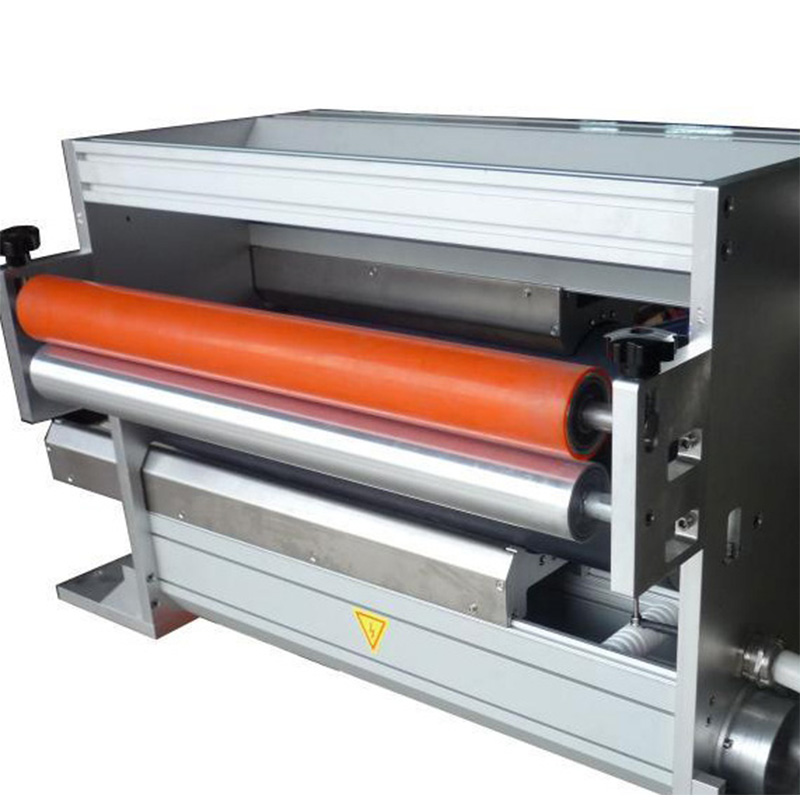

  • Suitable for the rubber layer of corona rubber rollers. Excellent arc resistance and super dielectric strength can increase the life of product. In plastic film packaging industry and double stretch film (BOPP, BOPET, BOPI) industry, corona machine and corona rubber roller complete the corona treatment of various plastic films.
Physical Properties Test Method Unit Data
Model     NJ-RG3232 NJ-RG3242 NJ-RG3252 NJ-RG3262 NJ-RG3272 NJ-RG3282 NJ-RG6363 NJ-652DY-70
Shore Hardness GB/T 531.1-2008 A0 31-35 38-43 47-53 56-61 65-71 75-81 67±3 38-43
Density GB/T 533-2008 g/cm3 1.17±0.02 1.14±0.02 1.18±0.02 1.22±0.02 1.27±0.03 1.30±0.03 1.19±0.02 1.14±0.03
Tensile Strength GB/T 528-2009 Mpa ≥4.0 ≥4.0 ≥4.0 ≥5.0 ≥5.0 ≥5.0 ≥6.0 ≥4.0
Elongation At Break GB/T 528-2009 % ≥350 ≥200 ≥200 ≥200 ≥160 ≥100 ≥180 ≥200
Tear Strength GB/T 529-2008 KN/m ≥9.0 ≥9.0 ≥10.0 ≥10.0 ≥10.0 ≥10.0 ≥11.0 ≥9
Impact Resilience GB/T 1681-2009 % ≥50 ≥55 ≥50 ≥48 ≥42 ≥38 / ≥55
Compression Set GB/T 7759 %  ≦13  ≦13  ≦13  ≦10  ≦10  ≦10 /  ≦13
Dielectric Strength GB/T 1695-2005 KV/mm / / / / / / / ≥28
Color Visual Inspection / Customized Customized Customized Customized Customized Customized Yellow Grey
Sample Cured Condition Curing agent and quantity: C-8A×1.2%;curing temperature/time: 170℃×6Min.
Process Suggestion Suitable for common roller coating and extrusion roller coating process, curing by vulcanizer.
Dielectric Strength Test Standard Comply with GB/T 7759, A shape smaple,180℃*22H.
Package 20Kg/Carton.
Storage Condition Room temperature less than 25℃, do not contact water, avoid sun exposure.
Expiry Date 10 months, suggest to finish within 3 months.If expired, can continue to be used after remilling and qualified inspection.
